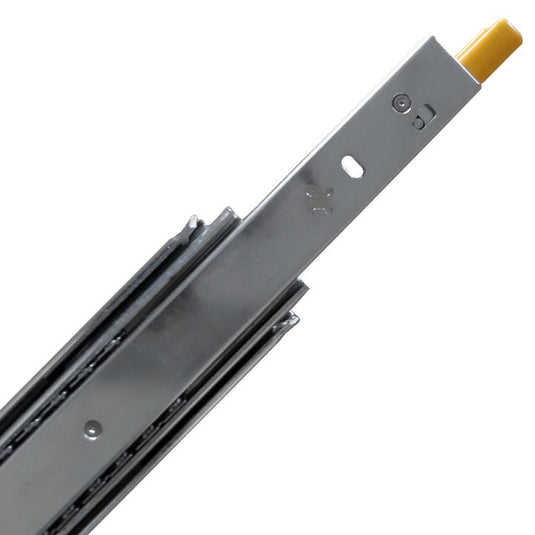

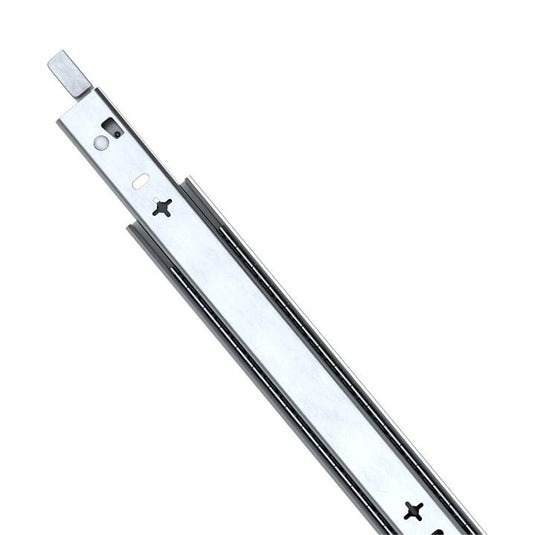

Locking Drawer Slides - Medium Duty
Our drawer slides / drawer runners offer full extension. These are commonly used in domestic and commercial applications as well as certain offroad environments. These runners can be used in your trailer, caravan, camper trailers, vans, utes and many other solutions.
Features:

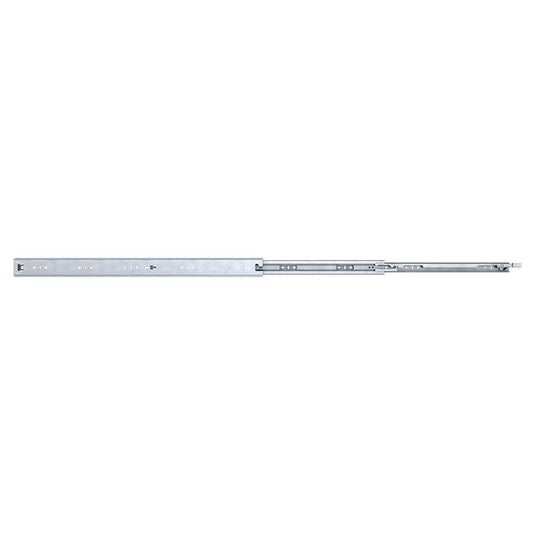

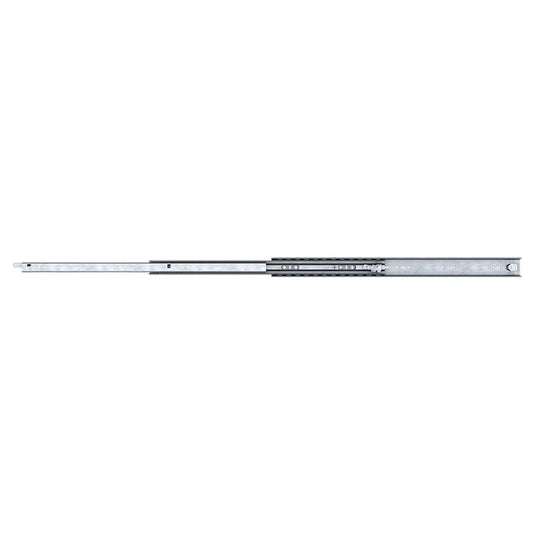

- Telescopic runners - Slides Open Up 100% Of Themselves.

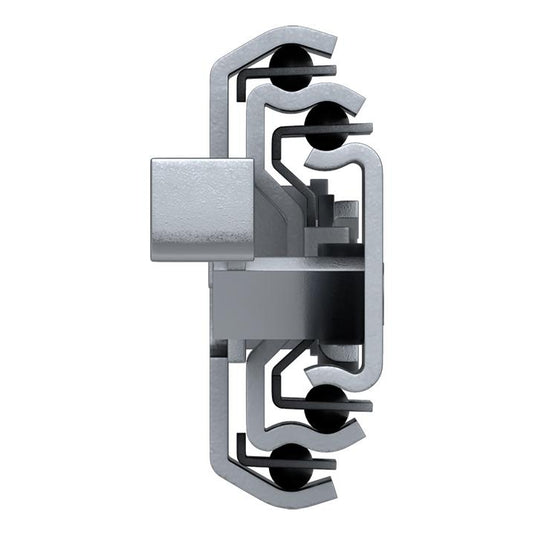

- Precision Linear Ball Bearing Motion
- Zinc plated body
- Very Reliable and Hard Wearing.
- Price is for a supplied matching pair. 1 pair = 2 Locking Drawer Slides = 1 x Left & 1 x Right. Locking tabs to each slide. ( These are not to be interchanged e.g. 1 x non-locking with 1 x locking. No warranty given. )
Specs:
- Height : 53mm
- Thickness of slide : 18.7mm +/-0.2.
**Images are for illustrative purposes only, purchased product may differ from the illustrations on this page**
| PART# | SIZE | L | A | B | C | D | A2 | B2 | C2 | LOADING KGS. |
| DSMD300L | 12" | 304.8 | 192 | N/A | N/A | N/A | 192 | N/A | N/A | 70 |
| DSMD350L | 14" | 355.6 | 224 | N/A | N/A | N/A | 256 | N/A | N/A | 80 |
| DSMD400L | 16" | 406.4 | 288 | N/A | N/A | N/A | 288 | N/A | N/A | 90 |
| DSMD450L | 18" | 457.2 | 192 | 320 | N/A | N/A | 96 | 320 | N/A | 100 |
| DSMD500L | 20" | 508 | 224 | 384 | N/A | N/A | 128 | 384 | N/A | 100 |
| DSMD550L | 22" | 558.8 | 256 | 416 | N/A | N/A | 160 | 416 | N/A | 100 |
| DSMD600L | 24" | 609.6 | 288 | 480 | N/A | N/A | 160 | 480 | N/A | 95 |
| DSMD650L | 26" | 660.4 | 288 | 512 | N/A | N/A | 192 | 384 | 512 | 90 |
| DSMD700L | 28" | 711.2 | 320 | 576 | N/A | N/A | 224 | 416 | 576 | 85 |
| DSMD750L | 30" | 762 | 192 | 384 | 608 | N/A | 224 | 448 | 608 | 80 |
| DSMD800L | 32" | 812.8 | 192 | 384 | 544 | 672 | 224 | 480 | 672 | 75 |
| DSMD850L | 34" | 863.6 | 192 | 416 | 576 | 736 | 224 | 512 | 736 | 70 |
| DSMD900L | 36" | 914.4 | 192 | 448 | 608 | 768 | 224 | 512 | 768 | 65 |
| DSMD1000L | 40" | 1016 | 192 | 480 | 672 | 864 | 224 | 640 | 864 | 60 |
